Building a skyscraper is no small feat, especially when you’re dealing with challenging ground conditions like those found in the Gulf region. It’s not just about stacking floors; it’s about making sure the whole thing stays put, no matter what nature throws at it. This article looks at how engineers tackle the tough job of foundation design for skyscrapers, making sure these giants have a solid base to stand on. We’ll explore the clever ways they anchor these massive structures deep into the earth, using special materials and smart techniques to handle everything from the weight of the building to the forces of wind and even earthquakes.
Key Takeaways
- Foundation design for skyscrapers in Gulf soils requires deep piles and high-strength concrete to reach stable ground and handle immense loads.
- Massive mat foundations spread the building’s weight evenly over the pile system, preventing settlement.
- Advanced materials, including specialized concrete mixes and high-strength steel, are vital for withstanding extreme forces.
- Aerodynamic building shapes and damping systems are used to combat strong winds, a major challenge for tall structures.
- Skyscrapers are designed to exceed regional seismic standards, with robust foundations and structural systems to resist earthquakes.

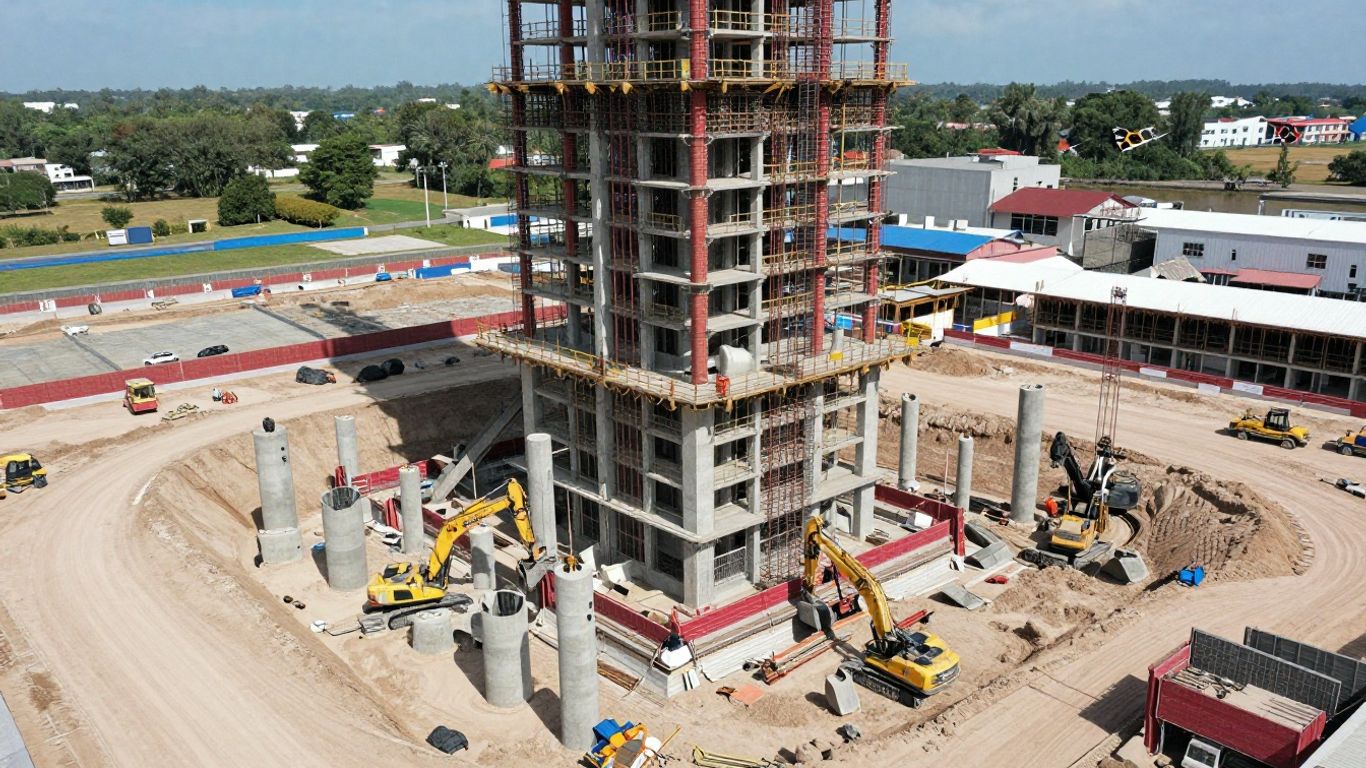

Foundation Design for Skyscrapers: Anchoring a Giant
Building a skyscraper that scrapes the sky is one thing, but making sure it doesn’t topple over is another challenge entirely. For these colossal structures, especially in places like the Gulf with its unique soil conditions, the foundation isn’t just a base; it’s the anchor that holds everything together. We’re talking about a structure that weighs hundreds of thousands of tons, so the ground beneath it needs to be ready for that kind of load.
Deep Piles and Concrete Strength
When you’re building this high, you can’t just pour a big concrete slab and call it a day. The ground might look solid, but it often has layers that aren’t strong enough to support such immense weight. That’s where deep foundations come in. Think of them as super-long stilts driven deep into the earth, past the weaker topsoil, all the way down to bedrock or a really stable layer of soil. These aren’t your average construction piles; they’re massive, often several meters in diameter and extending tens of meters down. The concrete used in these piles has to be seriously strong, too. It’s not just about resisting the downward push; it’s also about dealing with whatever the ground throws at it, like corrosive elements or the potential for soil to behave strangely during an earthquake. Getting the right concrete mix that’s both strong and can be pumped to those depths is a big part of the puzzle. These deep foundations are key to transferring the building’s massive load safely into the ground, providing that unshakeable base. This method significantly reduces settlement, ensuring a more reliable and durable construction. Deep foundations offer enhanced stability.
The Mat Foundation
Once those deep piles are in place, they’re usually topped with a giant concrete slab, often called a mat foundation. This thing is huge, sometimes several meters thick. Its job is to act like a giant plate, spreading the load from the skyscraper’s core and columns evenly across all the piles below. Without this mat, the weight might concentrate on just a few piles, which could cause problems. The reinforcement inside this mat is also intense – think thick steel bars woven together like a metal blanket. This provides the tensile strength needed to handle the immense forces and keep everything stable, preventing any sinking or settling into the ground.
Resisting Uplift Forces
It’s not just about pushing down; tall buildings also have to deal with forces trying to pull them up or push them sideways. Strong winds, especially in coastal areas, can create significant uplift pressures on the lower parts of a skyscraper. Imagine a giant sail; the wind can catch it and try to lift it. For a skyscraper, this means the foundation needs to be designed to resist these upward forces as well as the downward loads. This often involves making the foundation heavier, extending it deeper, or using specialized anchoring techniques to keep the building firmly planted. The design has to account for all these different forces to keep the skyscraper safe and sound.
Advanced Materials for Extreme Loads
Building skyscrapers, especially in challenging environments like the Gulf, means we’re pushing the limits of what materials can do. It’s not just about making things strong; it’s about making them strong and smart, able to handle incredible forces while keeping the structure manageable. We’re talking about materials that can take a beating from the elements and the sheer weight of the building itself.
High-Strength Concrete Formulations
Concrete is the backbone of most tall buildings, but standard mixes just won’t cut it for skyscrapers. We need concrete that can handle immense compressive loads, especially in the lower sections of the building. This means developing special formulations that can achieve strengths well over 100 megapascals (MPa). The trick is getting these super-strong mixes to also be workable, especially when they need to be pumped hundreds of meters into the air. Getting concrete to these heights is a feat in itself, requiring specialized equipment and mixes that don’t lose their consistency on the way up. The sheer volume of concrete used in projects like the Burj Khalifa, over 320,000 cubic meters, highlights the scale of this material challenge.
Advanced Steel Reinforcement
While concrete handles compression, steel is there to take the tension. The rebar used in skyscraper construction isn’t your average hardware store variety. We’re talking about high-quality steel that provides the necessary tensile strength to work hand-in-hand with the concrete. The way this steel is detailed and placed is critical. It needs to be precisely positioned to manage bending and shear forces, which are significant, especially when dealing with wind loads. This careful integration of steel and concrete is what gives the structure its resilience. The precise placement of reinforcement is a key part of structural engineering in skyscrapers.
Specialized Concrete Mixes
Beyond just high strength, concrete mixes need to be tailored for specific environmental conditions and construction methods. In the Gulf, this means mixes that can withstand high temperatures during placement and resist the corrosive effects of the soil and groundwater. For foundations, especially deep piles, the concrete needs to be durable and able to transfer massive loads effectively. The development of these specialized mixes is a testament to materials science innovation, allowing us to build taller and more robust structures than ever before. The lightweight properties of some advanced materials are also a key advantage for building taller structures, as discussed in the context of overcoming complex engineering hurdles.
The selection and application of advanced materials are not just about meeting minimum requirements; they are about anticipating future stresses and ensuring long-term performance. This involves a deep understanding of material behavior under extreme conditions and a commitment to innovation in formulation and application.
Here’s a look at some typical material properties we aim for:
| Material Type | Key Property | Typical Value Range (Example) |
|---|---|---|
| High-Strength Concrete | Compressive Strength | 100 – 150+ MPa |
| Durability (Chloride Ion) | Low Permeability | |
| Advanced Steel | Yield Strength | 500 – 700+ MPa |
| Tensile Strength | 600 – 800+ MPa |
Combating Environmental Forces
Skyscrapers in the Gulf face a unique set of environmental challenges, and designing for them is a big part of the job. We’re talking about intense heat, powerful sandstorms, and, of course, the wind. These aren’t minor inconveniences; they’re forces that can seriously impact a building’s structure and the comfort of the people inside.
The Aerodynamic Design
One of the most talked-about aspects of tackling wind forces is the building’s shape. It’s not just about looking good; the form of a supertall structure plays a massive role in how it interacts with the wind. For skyscrapers in windy regions, engineers often use a design that’s not a simple, uniform shape. Think of it like this: a perfectly square building might create predictable, strong vortices of wind that can make it sway. By introducing setbacks, tapering, or irregular shapes, the building can "confuse" the wind, breaking up these vortices and reducing the overall lateral force. This approach, often refined through extensive wind tunnel testing, is key to keeping the building stable and comfortable for occupants. It’s a smart way to manage the forces of nature without just building a bigger, stronger box. This kind of design evolution is seen across many regions considering environmental forces.
Tuned Mass Dampers for Stability
Even with an aerodynamic shape, tall buildings will still move a bit in the wind. To counteract this, engineers often incorporate a "tuned mass damper." This is essentially a very large weight, often a massive block of concrete or steel, that’s suspended within the building. It’s "tuned" to move in the opposite direction of the building’s sway. When the building starts to move one way due to wind, the damper moves the other way, effectively canceling out much of the motion. It’s like a giant pendulum working to keep things steady. This system is vital for occupant comfort, preventing that unsettling feeling of the building swaying too much.
The Y-Shaped Plan for Structural Synergy
Sometimes, the building’s footprint itself is designed to help manage environmental forces. A Y-shaped plan, for instance, offers several advantages. The three wings of the "Y" can help to break up wind patterns, similar to the aerodynamic shaping discussed earlier. More importantly, this shape provides a very stable structural base. The three points of contact with the foundation distribute loads more evenly and offer inherent resistance to lateral forces. This structural synergy means the building is better equipped to handle not just wind but also other environmental stresses. It’s a clever way to integrate form and function, making the building more resilient against the elements it faces daily. Many Dubai skyscrapers are engineered with such advanced solutions.
The exterior cladding of a skyscraper is its first line of defense against the environment. It must be robust enough to withstand abrasive sandstorms, resist extreme solar heat gain, and manage thermal expansion and contraction due to vast temperature swings. The materials and their assembly are critical for both protection and longevity.
Addressing Seismic Challenges
Even though the Gulf region isn’t typically considered a high-risk earthquake zone, designing skyscrapers here means planning for the unexpected. Engineers don’t just assume the ground will stay still. They build these massive structures to handle forces much stronger than what’s usually expected, making sure everyone inside stays safe and the building stays standing.
Exceeding Regional Seismic Standards
When it comes to seismic design, the approach for these towers goes above and beyond the minimum requirements for the area. Advanced computer programs are used to simulate how the building would react to different earthquake scenarios. The whole structure, from the deep foundation right up to the top, is designed to be inherently stable. This means the building can move and absorb the energy from shaking without falling apart. It’s about strength, yes, but also about having a bit of give to handle the stress.
Damping Systems for Ground Motion
Beyond the main structure, there are other systems at play. Think of them like shock absorbers for the building. While a tuned mass damper is often talked about for wind, the overall design incorporates elements that help dissipate seismic energy too. How the different parts of the building are connected, the type of steel used for reinforcement, and even the sheer weight of the structure all play a role in how it handles ground movement. The goal isn’t to stop all shaking, but to let the building sway and absorb the energy safely.
Robust Foundation for Earthquakes
The foundation is absolutely key here. It’s not just about holding the building up; it’s about anchoring it against sideways forces from an earthquake. The deep piles and the massive mat foundation work together to transfer loads deep into the earth, providing a stable base. This substructure is built with incredibly strong concrete and steel reinforcement, designed to resist not only the building’s weight but also the dynamic forces that an earthquake can generate. It’s a critical part of the seismic defense system for the entire skyscraper, helping to mitigate risks even in areas with lower seismic activity. This kind of planning is vital for any major construction project, and understanding the local geology is a big part of it, like in Muscat, Oman.
Here’s a quick look at how the foundation contributes:
| Foundation Component | Purpose in Seismic Resistance |
|---|---|
| Deep Piles | Transfer loads to bedrock, resist uplift and lateral forces |
| Mat Foundation | Distribute loads evenly, provide a stable base |
| Reinforcement | Provide tensile strength to resist bending and shear forces |
The design philosophy for seismic resilience in these towers is about creating a structure that can withstand significant ground motion without catastrophic failure. It involves a holistic approach, integrating the foundation, core, and overall building shape to manage and dissipate earthquake energy effectively.
Superstructure and Load Distribution
The Reinforced Concrete Core
At the very center of these massive skyscrapers, you’ll find a reinforced concrete core. Think of it as the building’s spine. This core is usually hexagonal or rectangular and is built with really thick concrete walls and a lot of steel bars inside. It’s designed to be super strong, not just for holding up all the floors above it, but also for resisting sideways forces, like strong winds or even earthquakes. All the important stuff, like elevators, stairwells, and plumbing, is tucked away inside this core. It’s the main support system that everything else attaches to.
Wings and Outriggers for Load Transfer
Extending out from that central core are the building’s wings. These are built with concrete columns and floors. Now, here’s where it gets clever: at different levels, special structures called outriggers connect these wings back to the main core. These outriggers act like braces, making the whole structure much stiffer. They’re really important for moving those sideways forces from the wings over to the strong core. This whole system works together to spread the building’s weight and stresses evenly, making the entire skyscraper more stable. It’s a smart way to handle the immense loads involved in building so high.
Minimizing Foundation Load
One of the biggest headaches in designing skyscrapers is figuring out how to get all that weight down to the ground without the foundation sinking or failing. Engineers are always looking for ways to make the superstructure itself lighter. This means using materials that are strong but not too heavy. It also involves smart design choices, like the Y-shaped plan mentioned earlier, which can help distribute loads more efficiently. The goal is to make the building as light as possible while still being incredibly strong. This careful balance between superstructure design and foundation capacity is key to building these giants. It’s all about making sure the load gets where it needs to go without causing problems deep underground. This is where innovative aerodynamic designs can also play a part in reducing the forces the building has to deal with. reducing wind load
The way a skyscraper’s weight is managed from top to bottom is a complex puzzle. Every floor, every beam, and every column has to work in harmony. The superstructure isn’t just a collection of parts; it’s a carefully engineered system designed to channel immense forces safely down to the earth. This requires a deep understanding of how materials behave under stress and how different structural elements interact.
Innovative Construction Techniques
Building skyscrapers in the Gulf region, especially on challenging soil, isn’t just about design; it’s a massive logistical puzzle. The sheer scale means we’re talking about moving mountains of material and executing complex steps with incredible precision. It’s a real testament to human ingenuity.
Pumping Concrete to Extreme Heights
Getting concrete to the top of a supertall building is one of those things that sounds simple but is incredibly difficult. We’re not just talking about a few floors; we’re talking about pumping concrete hundreds of meters into the sky. This requires specialized, high-pressure pumps and concrete mixes that stay workable for a long time. The concrete needs to flow smoothly without separating or hardening too quickly. It’s a delicate balance that engineers have perfected over the years. For projects like the Burj Khalifa, concrete was pumped to heights exceeding 600 meters, a feat that required careful planning and advanced equipment.
Logistical Feats of Material Delivery
Imagine the amount of steel, concrete, and other materials needed for a skyscraper. Now imagine getting all of that to a construction site in a busy city, often with limited space and tight schedules. It’s a huge undertaking. Deliveries have to be coordinated down to the minute to keep the work flowing. This involves managing fleets of trucks, cranes, and a whole support system to ensure materials are on-site exactly when they’re needed. The sheer volume of concrete poured for the foundation alone is staggering, requiring a logistical feat of epic proportions.
Precision in Reinforcement Placement
Steel reinforcement, or rebar, is what gives concrete its tensile strength. In skyscrapers, the amount and placement of this rebar are critical. It’s not just about throwing steel bars in; it’s about intricate patterns and exact locations. This is especially true for the core and other load-bearing elements. The reinforcement needs to be tied together precisely to handle the immense forces the building will experience. Any error here could have serious consequences down the line. The steel reinforcement used in the concrete structures was also of high quality, providing the necessary tensile strength to complement the compressive strength of the concrete. The precise placement and detailing of this reinforcement were critical for ensuring the structure’s ability to withstand bending moments and shear forces, particularly those induced by wind and seismic loads.
The construction of these mega-structures relies heavily on advanced planning and execution. Every step, from material sourcing to the final bolt, is meticulously managed to overcome the unique challenges presented by height, environment, and soil conditions. It’s a symphony of engineering and logistics working in harmony.
Here’s a look at some key aspects:
- Material Quantities: A single supertall building can use hundreds of thousands of cubic meters of concrete and tens of thousands of tons of steel.
- Delivery Windows: Just-in-time delivery is often employed to minimize on-site storage and traffic congestion.
- Quality Control: Rigorous testing of concrete mixes and steel components is performed at every stage.
- Safety Protocols: Strict safety measures are in place for all workers, especially at extreme heights.
Wrapping It Up
So, building super tall structures in places like the Gulf, with its tricky soil and crazy weather, is no joke. It takes a whole lot of smart thinking and some seriously tough materials to make sure these giants don’t just stand up, but stay standing. We’ve seen how they’ve figured out how to anchor these buildings deep down and how the shape itself helps fight off the wind. It’s pretty wild to think about all the challenges and the clever ways engineers solved them. It really shows what people can do when they put their minds to it, creating something amazing that lasts.
Frequently Asked Questions
Why are skyscraper foundations so important, especially in places like the Gulf?
Think of a skyscraper like a giant tree. The foundation is its roots. It needs to be super strong to hold up the huge weight of the building and keep it from sinking or tipping over, especially in tricky ground like desert sand or soil that can get wet.
What makes building foundations in the Gulf region different?
The ground in the Gulf can be sandy and sometimes has salty water underground, which can be tough on concrete. Also, the weather can be very hot. So, engineers have to use special, super-strong concrete and build deep foundations, like giant concrete pillars called piles, that go way down to solid rock to make sure the building stays put.
How do engineers make sure a skyscraper doesn’t fall over from the wind?
Wind can push really hard on tall buildings! Engineers design buildings with shapes that help ‘trick’ the wind, like making the building narrower at the top or giving it a twisty look. They also use heavy weights inside the building, called dampers, that move to cancel out the building’s shaking, kind of like how you might lean the other way to keep your balance.
What kind of special materials are used in these giant buildings?
Builders use super-strong concrete that can handle tons of weight and doesn’t break easily. They also use tough steel bars mixed into the concrete to give it extra strength, like adding rebar to a sidewalk but way, way bigger and stronger. These special materials help the building stand tall and last a long time.
How do they get tons of concrete and steel all the way up to the top floors?
It’s like a huge construction puzzle! They use powerful pumps to push wet concrete up through giant pipes, sometimes higher than you can imagine. They also have to carefully plan when and how to deliver all the heavy steel parts and other materials, making sure everything arrives exactly when and where it’s needed, often working around the clock.
Do skyscrapers need to be strong enough for earthquakes, even if they don’t happen often?
Yes, definitely! Even if earthquakes are rare in a place, engineers build skyscrapers to be extra safe. They design the foundations and the whole building structure to be strong and a little bit flexible, so they can handle the shaking from an earthquake without falling down. It’s all about making sure people inside are safe.
